Product Details

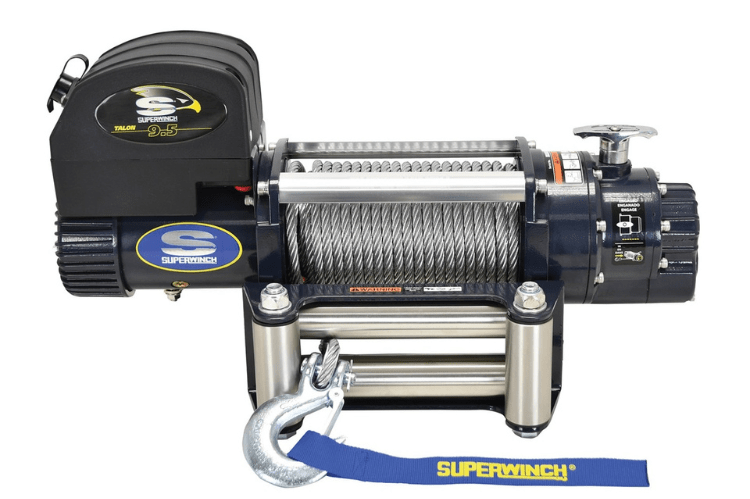

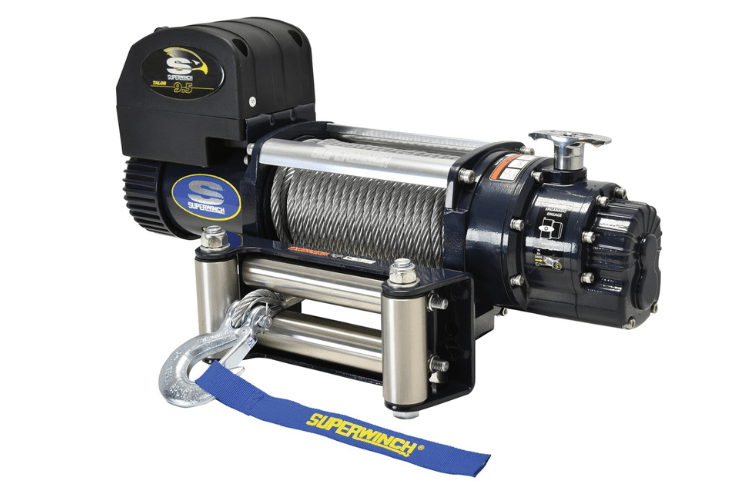

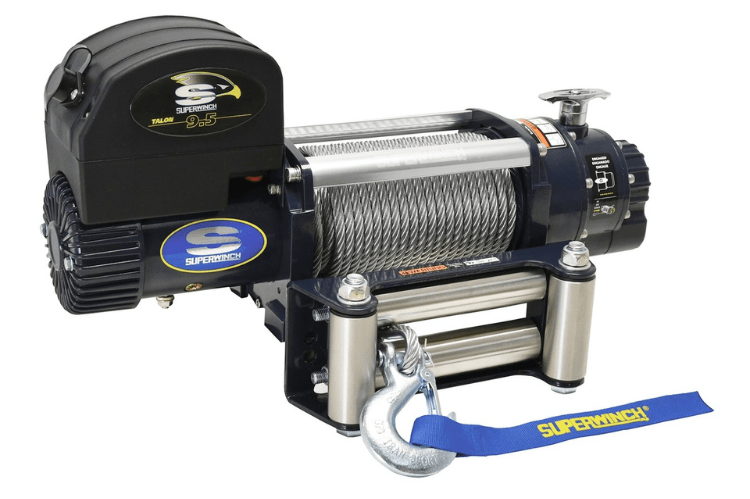

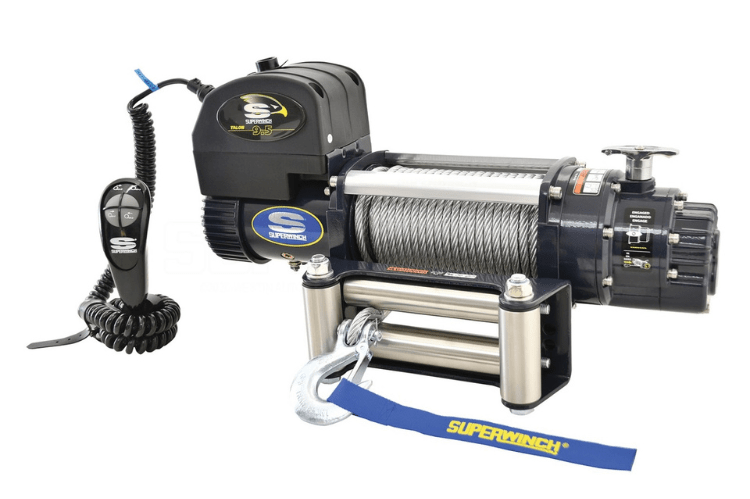

Superwinch Talon 1695200
Features:
- 12V DC 9,500 lbs. rated line pull
- 5.2 HP sealed motor
- Automatic load holding external disc brake design located outside the drum

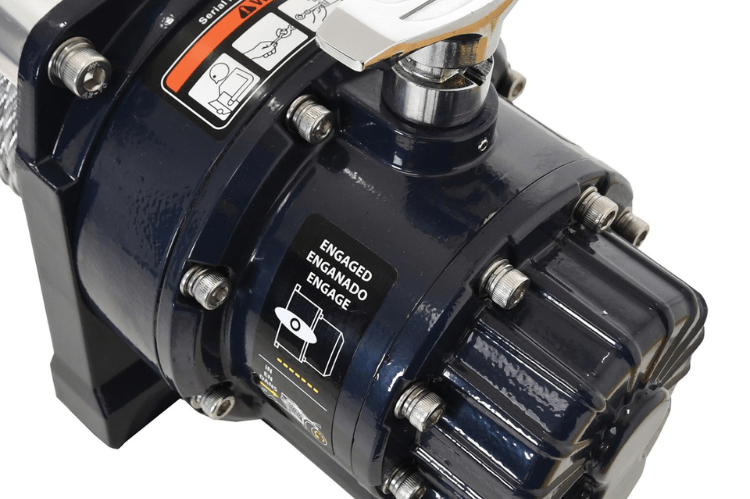

- Ergonomic free spool knob lifts and turns effortlessly
- 2-stage spur/2-stage planetary gearing with 148:1 ratio
- Sealed submersible vented solenoid

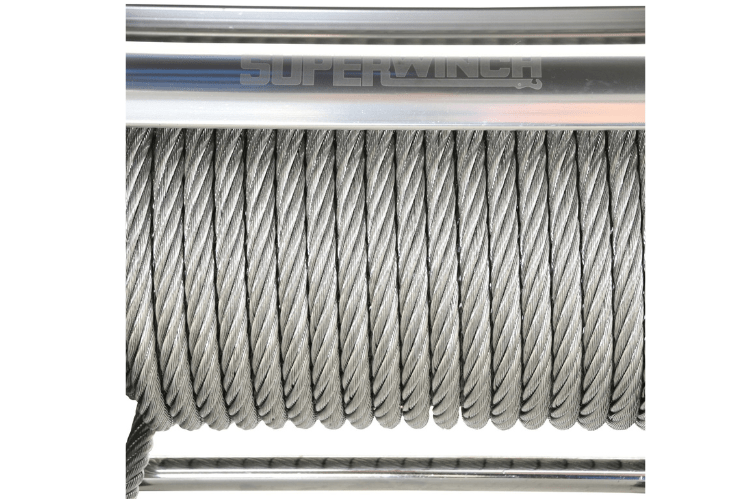

- 3/8 in. x 85 ft. steel wire rope

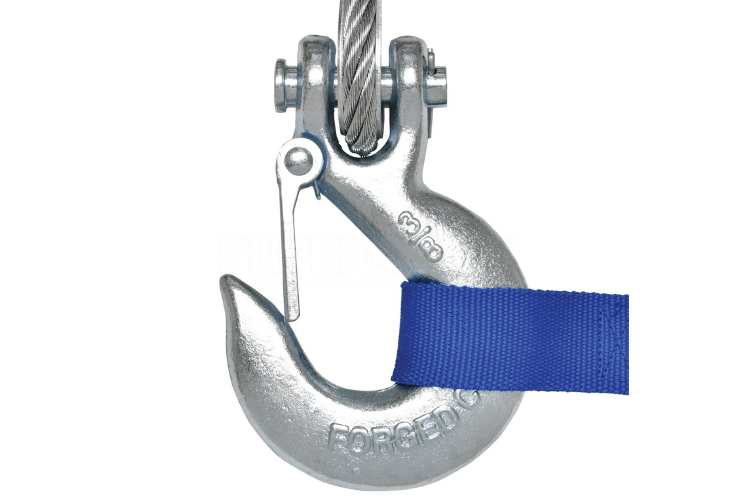

- Heavy duty, clevis pinned, latched hook

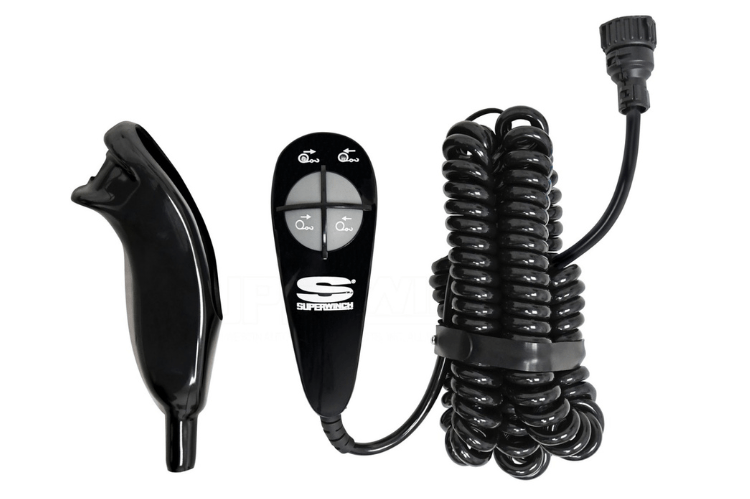

- 15 ft ergo handheld remote control with coiled cable and LED light indicators
- 62 FPM no load line speed
- IP 67 rated against dust and moisture

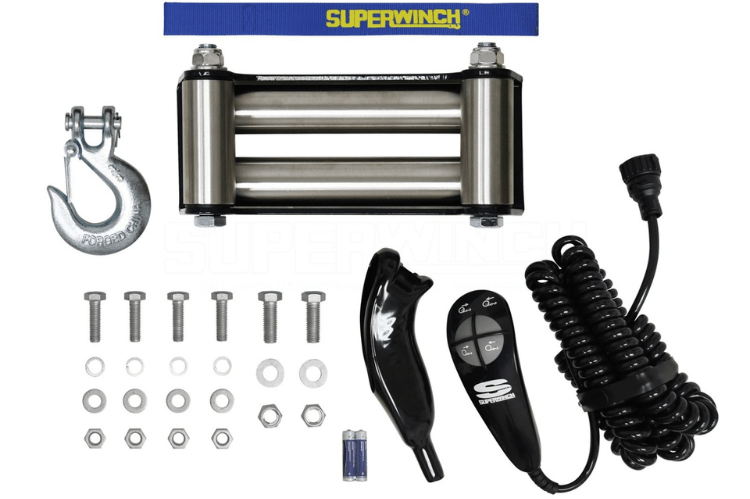

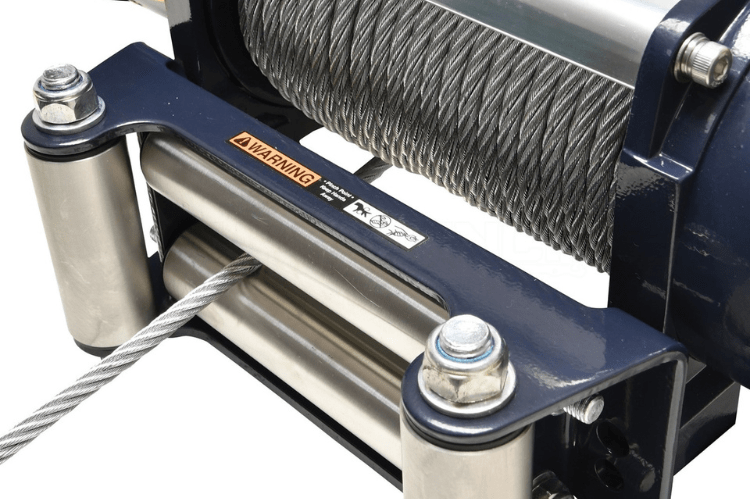

- Stainless steel 4-way roller fairlead
Details:
- Brake -Automatic 100% Load Holding Disc (outside of drum)
- Clutch - Free-Spooling, Pull and Turn
- Dimensions - 24.6 in. L x 10.0 in. D x 10.7 in. H (624.8mm L x 254mm W x 271.8mm H)
- Drum - 2.5 in. (63.5mm)
- Drum - 8.75 in. (222.2mm)
- Fairlead- Heavy Duty Stainless Steel 4-way Roller
- Gear Ratio - 148:1
- Gearing - 2-Stage Spur, 2-Stage Planetary
- Hook - Heavy-Duty, Clevis Pinned Latched
- Installed Weight - 90 lbs. (41 kg)
- Line - 75 Amps Motor Draw/62 FPM (18.9 MPM) Line Speed
- Line - 430 Amps Motor Draw /5.0 FPM (1.50 MPM) Line Speed

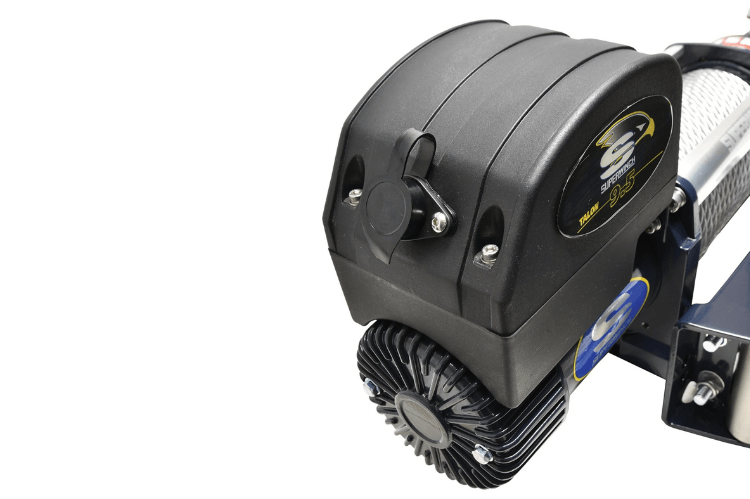

- Motor - Sealed 5.2 HP Series Wound
- Mounting Bolt Pattern - 10 in. x 4.5 in. (254mm x 114.3mm) & 10 in. x 6.5 in. (254mm x 165.1mm)
- Rated Line - 9,500 lbs. (4309.1 kg)
- Remote - Sealed Ergonomic Hand-held with 15ft. Coiled Cord
- Rope - Steel Wire 3/8 in. x 85 ft. (9.5mm x 25.9m)
- Solenoid - Vented, Sealed Submersible
- Warranty - Limited Lifetime Mechanical, 7 Year Limited Electrical
Descriptions:
One of Superwinch's most popular winches, the Tiger Shark 9500SR comes standard with 3/8 synthetic rope, an automatic load-holding brake, better drums (thicker, fabricated steel), and stainless steel hardware, and tie bars. Dollar for dollar, there's no better winch than the Superwinch Tiger Shark.
When you select the high-quality Superwinch, we guarantee your satisfaction. Our team is always happy to answer any questions related to bumpers. We can also work together on pricing if your budget is tight. Just start a chat with us or give us a call on 281-404-2124.
