Front Bumper Installation Guide for Ford Raptor

Front Bumper Installation Guide for Ford Raptor



So the shiny new bumper for your Ford Raptor finally arrived. Naturally, the next step is to put it on your truck! But there’s no need to go to your dealer or auto shop mechanic. With a few tools and a couple of hours of work, you can give your baby a new look yourself.

For many, working on their truck themselves gives a certain sense of satisfaction. If you’re the type that doesn’t mind getting their hands dirty, then this is for you.

In this guide, you’ll find step by step instructions on how to install a new front bumper for your Ford Raptor. We’ll be using   Stealth Fighter front bumper  from   Addictive Desert Designs  as an example, but the steps should be similar to other bumpers available for the vehicle. Also included are relevant images, a complete list of tools needed, and recommendations to help make the process as easy as possible. Be sure to read through it completely before busting out the wrenches.



PREPARATION

  1. Disconnect the negative terminal on the battery. Park the vehicle on level ground and set the emergency brake.
  2. We recommend reading through the installation instructions in whole before performing the work.
  3. Estimated Installation Time: 2 Hours
  4. You will need the following tools:
    1. Ratchet
    2. 3/4” Socket and Wrench
    3. 9/16” Socket
    4. E6 External Torx Socket
    5. 8mm Socket
    6. 11mm Socket
    7. 13mm Socket
    8. 15mm Socket
    9. 21mm Socket
    10. Reciprocating Saw
  5. Included in Stealth Fighter bumper Kit:
2 – Hex Head Bolts – 1/2”-13 x 1 1/2”
4 – Flat Washers – 1/2”
2 – Nylon Locking Nuts – 1/2”-13
2 – Grade 8 (Gold) Bolt – 3/8”-16 x 1 1/2”
2 – Fender Washers – 3/8”
2 – Long Reach U-Nuts – 3/8”-16
2 – Grade 5 Bolts – 3/8”-16 x 1 1/2”
4 – Flat Washers – 3/8”
2 – Regular Reach U-Nuts – 3/8”-16



Notes:

  • This installation requires 2 people for best results
  • To keep the adaptive cruise control (ACC) function, the module must be relocated. Instructions for installing an ACC relocation bracket can be found   here.
  • If you’re also installing a winch in your bumper, you’ll also need to install a compatible intercooler kit. Instructions for that can be found   here.



REMOVAL

  1. Use 13mm and 15mm Sockets to remove the skid plate bolts (x6), then remove the skid plate from the truck. (Fig A)

2017 Ford Raptor Bumper Installation Instructions



  1. Remove the metal spacer that the bottom two skid plate bolts go through. Then, remove the two factory U-nuts that the bottom two skid plate bolts threaded into. (Fig B)

    2017 Ford Raptor Bumper Installation Instructions



  1. Carefully pull the front plastic piece off of the bumper. There are no tools required for this step, it pulls off by hand. (Fig C)

    2017 Ford Raptor Bumper Installation Instructions

  1. Remove your Adaptive Cruise Control Module. (Fig D)
    1. Using an 11mm Socket, remove the three nuts holding the Module on.
    2. Using an E6 External Torx Socket, remove the three studs holding the Module on.
    3. Remove the Module.
    4. If you are also installing an adaptive cruise control relocation bracket, please follow this link for installation instructions:

    2017 Ford Raptor Bumper Installation Instructions



  1. Remove the 8mm Bolt that holds on the bumper side support bar. Repeat this step on the other side. (Fig E)

    2017 Ford Raptor Bumper Installation Instructions



  1. Remove the 21mm Nuts that hold on the bumper. There are three per side. Two of the nuts (per side) face the front (they were hidden behind the plastic piece you removed in Removal Step 3). One of the nuts (per side) faces the rear of the vehicle and is accessible from underneath the truck. (Fig F)

    2017 Ford Raptor Bumper Installation Instructions



  1. Remove the bumper from the truck. As you are removing the bumper, be sure to pull the rubber shroud from the plastic clips that attach it to the bumper. (Fig G)

    2017 Ford Raptor Bumper Installation Instructions



  1. Remove each of the Skid Plate Brackets by removing the 13mm bolt that holds each of them on. There is one bolt per side. (Fig H)

    2017 Ford Raptor Bumper Installation Instructions

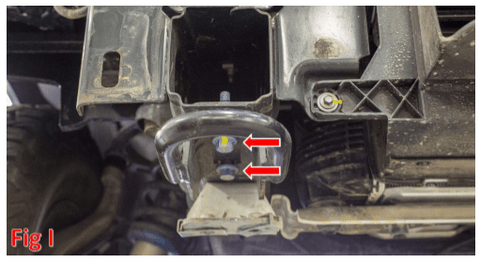

  1. Remove the tow hooks by removing the two 15mm bolts that hold each of them on. (Fig I)

    2017 Ford Raptor Bumper Installation Instructions



  1. Note: If you are installing a winch on your bumper, skip this step.

Using a reciprocating saw or cutoff wheel, cut the intercooler scoop as shown in Fig J. The bottom half of the scoop gets trimmed to the point where the plastic and rubber meet, while the upper half of the scoop gets trimmed flush with the outer structure. You may do this on or off truck. If you would like to remove the scoop, remove the 8mm mounting bolts (x4). Reinstall the scoop when you’re done cutting the scoop.



  1. Prepare to install your new   ADD Stealth Fighter Front Bumper.



INSTALLATION

  1. If you have any   lightswinch  to install on your bumper, now would be a good time to do so. For light/winch installation information, please follow the light manufacturer’s instructions. You will have to remove the skid plate to install a winch. If you are installing a winch on your bumper, now is also a good time to install your intercooler upgrade kit.
  2. Install the supplied Regular Reach 3/8” U-Nuts (x2) into the holes in the cross member that lined up with the two rear skid plate bolt holes (You removed these bolts and the factory U-nuts in Removal Steps 1 &2). (Fig K)

    2017 Ford Raptor Bumper Installation Instructions



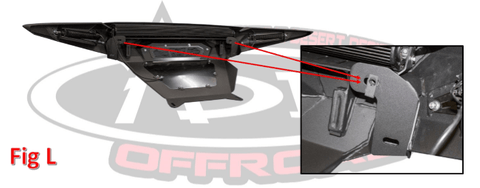

  1. Install the supplied Long Reach 3/8” U-Nuts on the upper bumper mounting holes. (Fig L)

    2017 Ford Raptor Bumper Installation Instructions

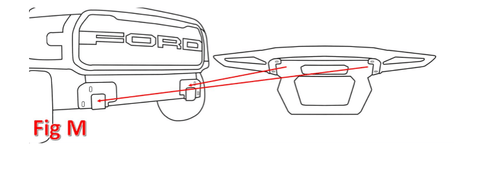

  1. Line the 4 mounting holes on the bumper up with the 4 mounting holes on your truck’s frame horns. (Fig M) Hold the bumper to the truck by using the supplied 1/2” Bolts (x2), 1/2” Washers (x4), and 1/2” Lock Nuts (x2) on the bottom mounting holes. Then, from the back side of the frame horn, use the supplied 3/8” Gold Grade 8 Bolts (x2) and 3/8” Fender Washers (x2) on the upper mounting holes.

    2017 Ford Raptor Bumper Installation Instructions

  1. Line the bottom mounting holes on the skid plate portion of the front bumper up with the U-nuts you installed in Installation Step 2. Loosely install the supplied 3/8” Hex Head Bolts (x2) and 3/8” Washers (x2). (Fig N)

    2017 Ford Raptor Bumper Installation Instructions



  1. Align the bumper so that it is straight in relation to the grill/headlight bezels. You may need one person to hold the bumper in place while another person tightens the bolts.
  2. Torque the supplied 1/2” bolts to 70 foot pounds. Torque the supplied 3/8” Hex Head Bolts to 20 foot pounds.
  3. Stand back and enjoy your new ADD Stealth Fighter Front Bumper.
  4. Check and re-tighten if needed, all mounting bolts after 100 miles and periodically thereafter.

 If you have any questions about the installation, feel free to get in touch with our customer service team. We’re happy to help in any way we can. At   BumperOnly, setting up your ride is our pride.
