Superlift K166 2017-2022 Ford F250/F350 Super Duty 4WD 4" 4-Link Kit Diesel with SL Shocks

Superlift K166 2017-2022 Ford F250/F350 Super Duty 4WD 4" 4-Link Kit Diesel with SL Shocks

Regular price $1,879.99
$1,879.99 Sale price Regular price $2,443.98

Lift: 4 in.

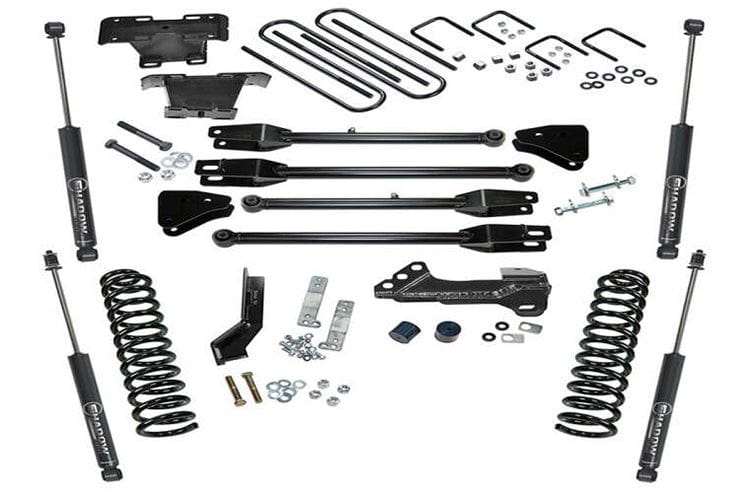

What's included:

  • * Coil springs
  • * Superide or Bilstein shocks
  • * Track bar bracket
  • * Bump stop spacers
  • * 4-link system
  • * Steering stabilizer relocation bracket
  • * Brake line relocation bracket
  • * Fabricated lift blocks
  • * Brake line relocation bracket
  • * Superide or Bilstein shocks
  • * U-bolts and hardware


  • If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required.(Part # 9649)
  • If equipped with factory top mount overload leaf springs, longer u-bolts are required.(Part # 11724)
  • Read more
    Product Details

    Superlift 4" 4-Link Kit Diesel K166


    • Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
    • Replacement Heavy-Duty Tubular 4-LINK arms with Reflex bushings
    • Track bar relocation bracket prevents stud bind and steering wheel kick
    • Front and Rear – Superlift Shocks | Bilstein® 5100 Series Shocks | Fox® Performance Series 2.0 IFP Shocks | KING Shocks (K166KG)
    • Backed by our limited lifetime warranty
    • Retains OEM caster and camber alignment specifications
    • Maintains ride quality and handling characteristics
    • Designed using Original Equipment (OE) CAD data for accuracy.

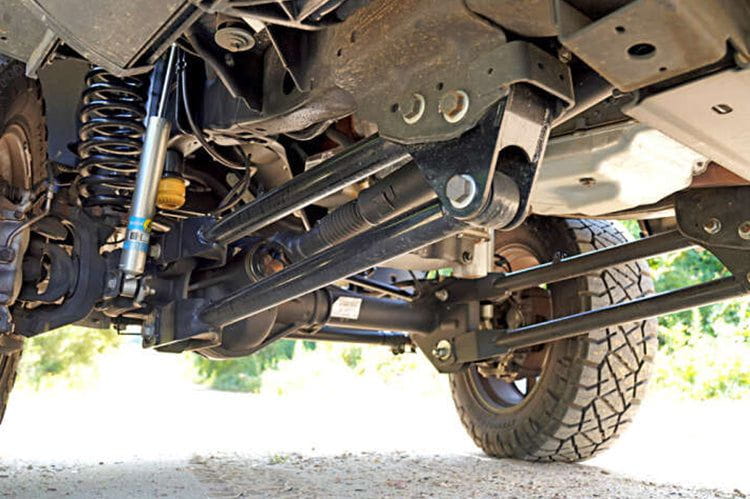

    This 4" lift designed for the 2017-2021 Ford Super Duty F-250 | F-350 4WD showcases Superlift's precision-engineered, heavy-duty tubular 4-LINK arms. These arms not only provide your vehicle with a distinct custom appearance but also ensure a straightforward installation process. The robust 4-LINK arms are equipped with press-fit REFLEX bushings, known for their exceptional vibration dampening properties, flexibility, and outstanding durability.

    The 4-LINK design in this 4" lift serves to enhance the suspension control and tire longevity for F-250 and F-350 models by minimizing caster changes throughout the suspension cycle. Additionally, the lift kit incorporates specialized front coil springs tailored for diesel engines. It also integrates a newly designed track bar relocation bracket, crucial for maintaining precise steering geometry and track bar phasing.

    In this 4-inch lift kit for Ford F-250 and F-350, the rear lift is accomplished through a newly designed fabricated rear block, enabling the removal of the stock block. This fabricated block not only facilitates correct pinion and axle angles but also reduces axle wrap. To complement your lifted F-250 | F-350, a diverse range of top-quality shocks is available for this kit, including options from Superlift, Bilstein 5100 Series, Fox Performance Series 2.0 IFP Shocks, and King Shocks (K166KG).
