Product Details

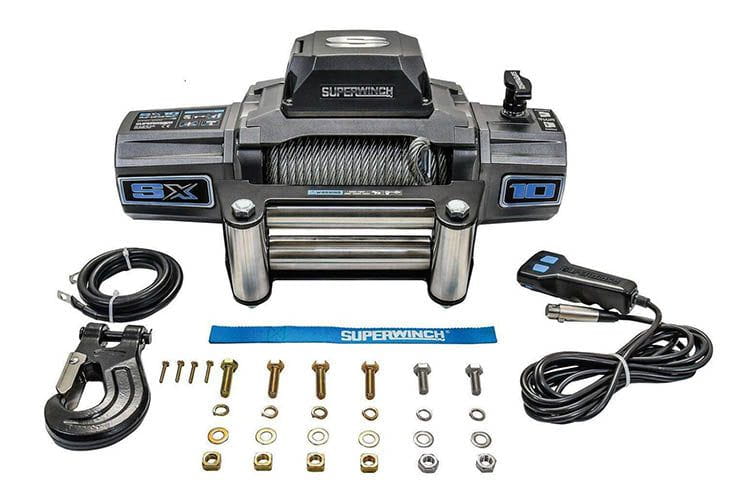

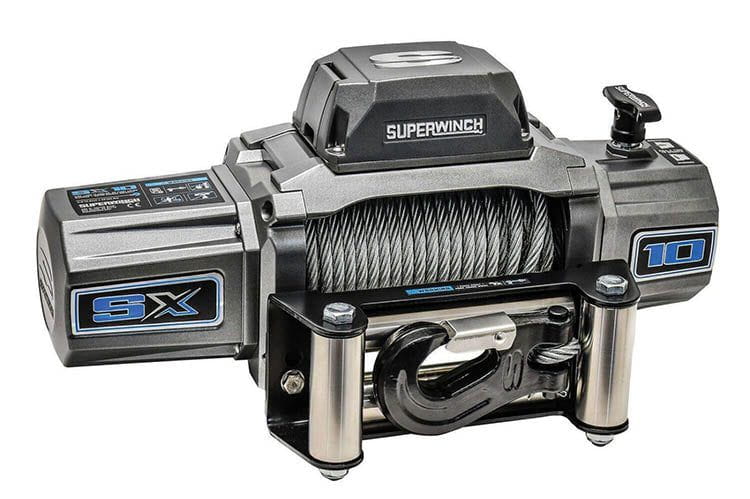

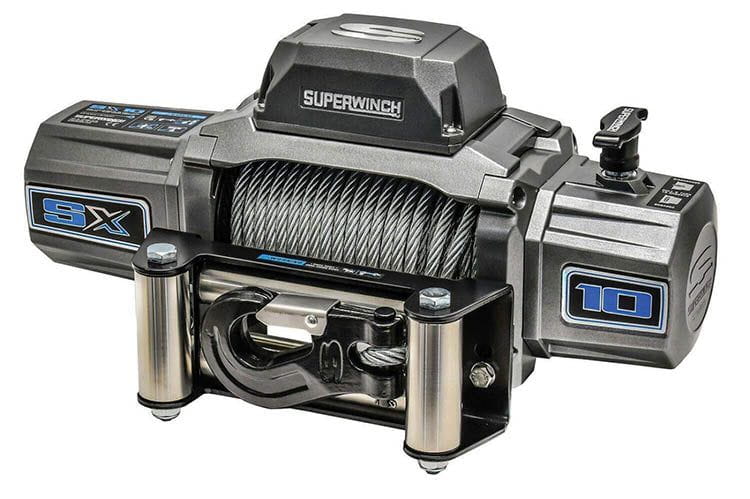

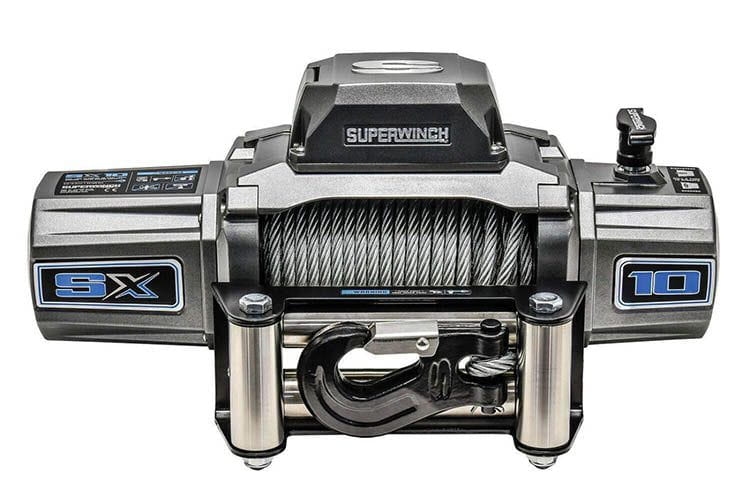

Superwinch SX10 1710200
Reinforce your truck with this robust Superwinch SX10 winch!
- 10,000 lbs. capacity
- 5.5 HP sealed motor

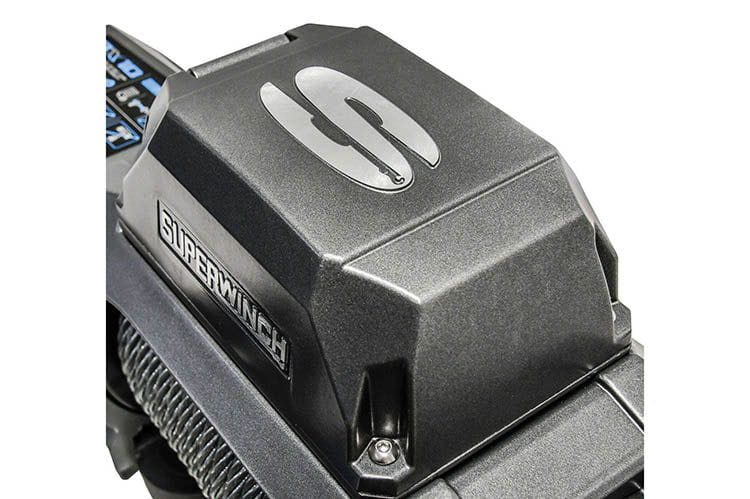

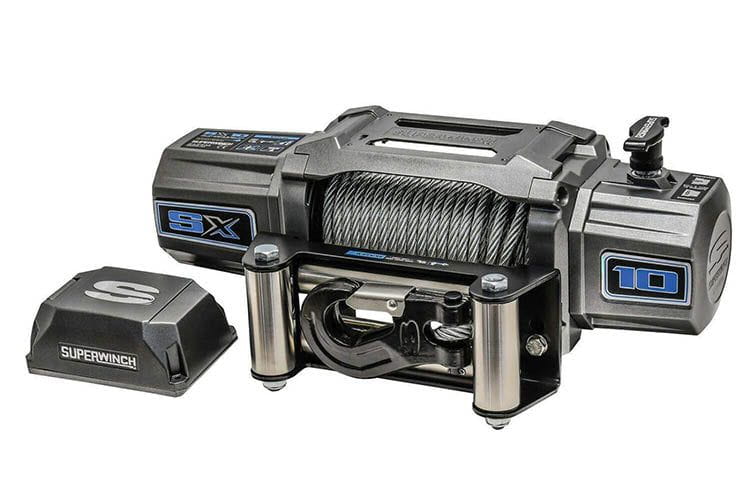

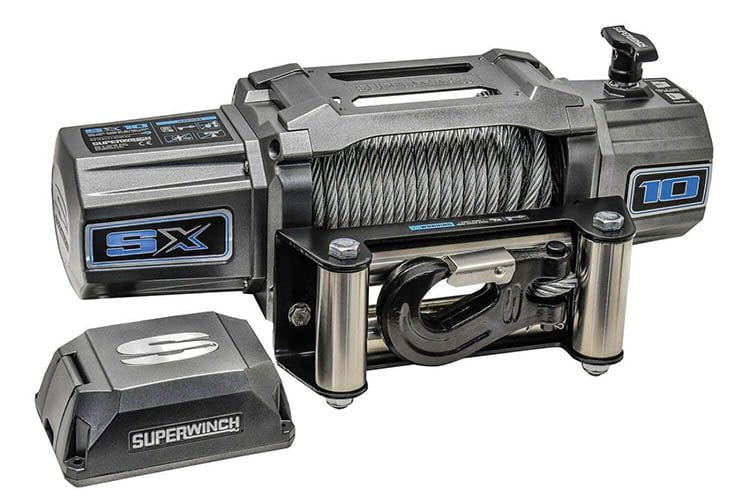

- Relocatable die-cast aluminum control box

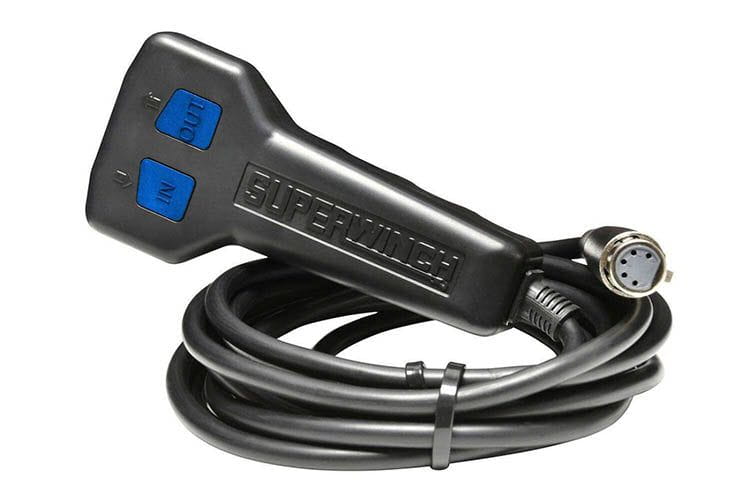

- 12 ft. wired remote with integrated lithium ION rechargeable LED flashlight (2277R Wireless Remote Upgrade Kit available)

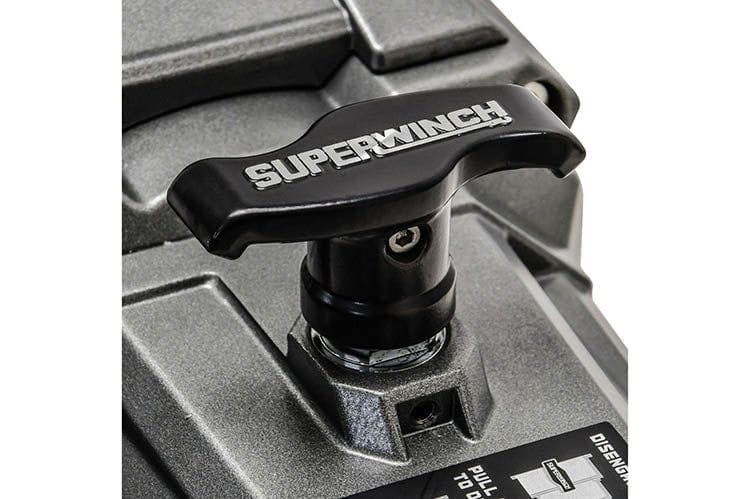

- Ergonomic pull-and-turn clutch handle
- 3-stage planetary gearing with a 218:1 ratio

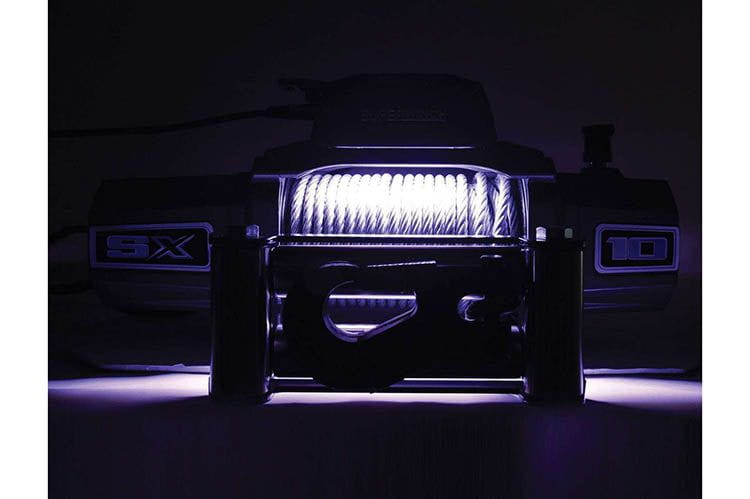

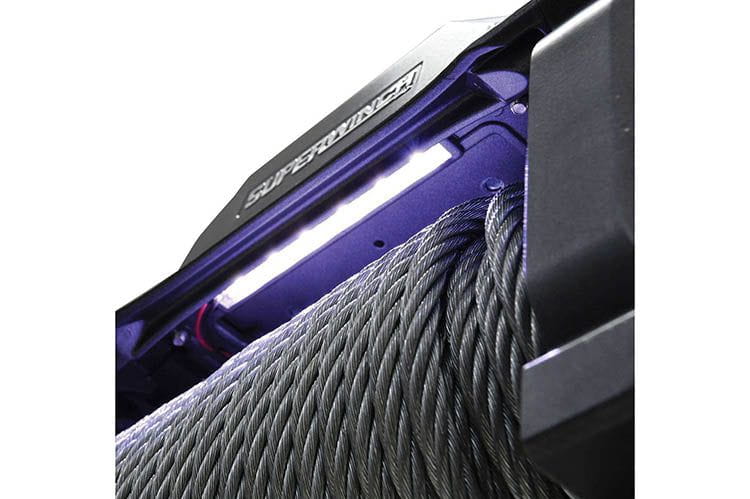

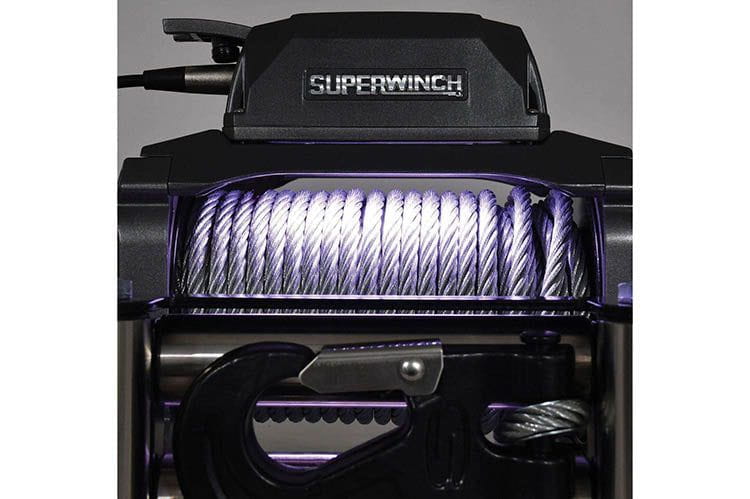

- Patented drum light
- 3/8 in. x 85 ft. wire rope
- The drum diameter measures 2.5 in.

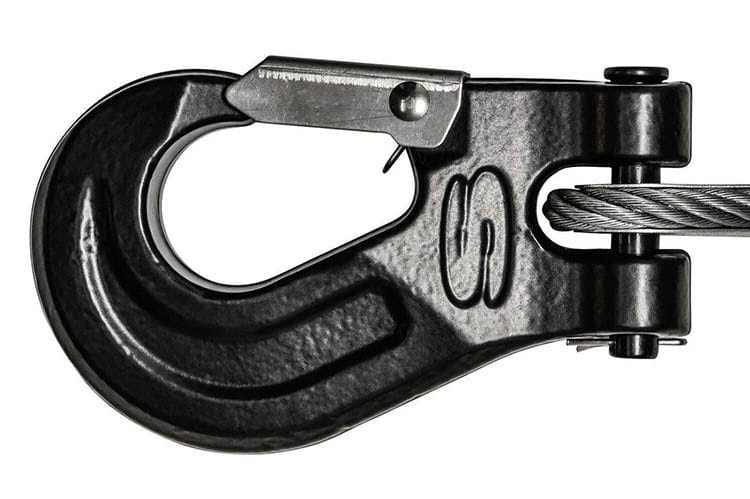

- Heavy-duty clevis winch hook

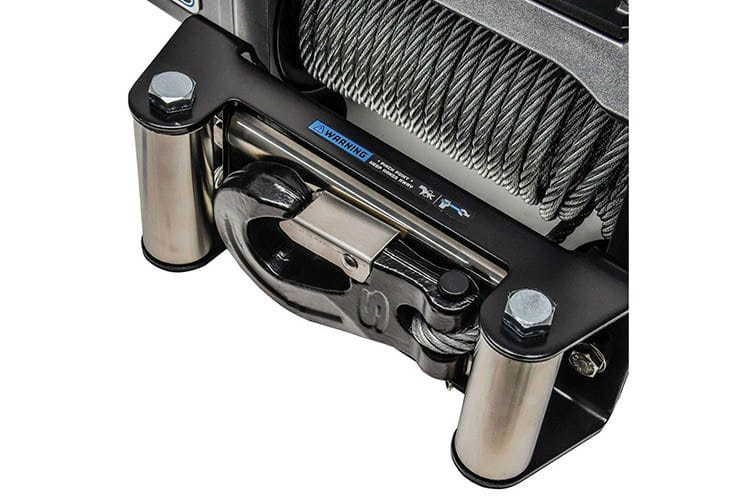

- Stainless steel roller fairlead
- 100% full load holding automatic mechanical brake
- IP68-rated waterproof and dustproof
- Durable metallic graphite powder coat finish
- Clockable gearbox
- Brake System - 100% Full-load holding automatic mechanical brake
- Clutch - Pull and turn clutch handle

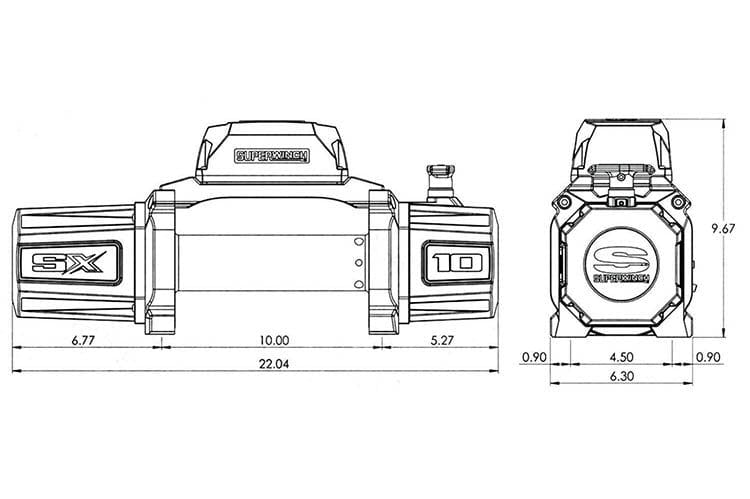

- Dimensions - 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
- Drum - Durable fully welded steel drum
- Fairlead - Stainless Steel 4-Way Roller
- Gear Ratio - 218:1
- Gearing - 3-stage planetary
- Motor - 5.5 HP, 12V DC
- Package Weight - 88 lbs
- Mounting Bolt Pattern - 10in x 4.5in (254mm x 114.3mm)
- Rated Single Line Pull (Lbs) - 10000
- Remote Control - 12 ft Hand-held wired remote only included (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into the winch.)
- Rope Length - 3/8 in x 85 ft (9.5mm x 26m)
- Winch Hook - Heavy-Duty, Clevis Pinned Latched
- Warranty - Limited Lifetime Mechanical/7 Year Limited Electrical

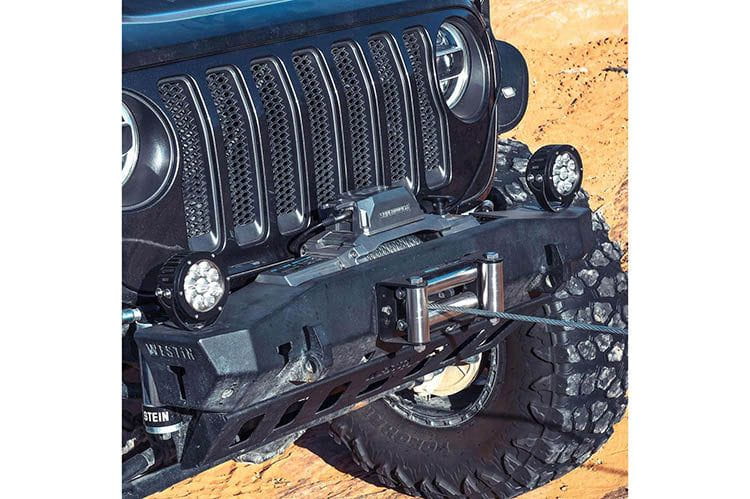

Why does this steel wire rope winch make sense for your truck?
The SX10 is designed to offer users the perfect blend of power, speed, innovation, and reliable performance that Superwinch is known for. The SX Series winches meet the highest standards required by modern vehicles while boasting an affordable and stylish design that includes many industry-leading features not typically found in other high-performance winches. With a pulling capacity of 10,000 lbs., the new SX series is IP68 rated for dust and waterproof operation. Its sleek, contemporary appearance is enhanced by a durable metallic graphite powder-coat for long-lasting protection. Featuring innovative elements like a patented drum light, a relocatable control box, a lighted remote, and steel winch rope, this winch truly has it all.
